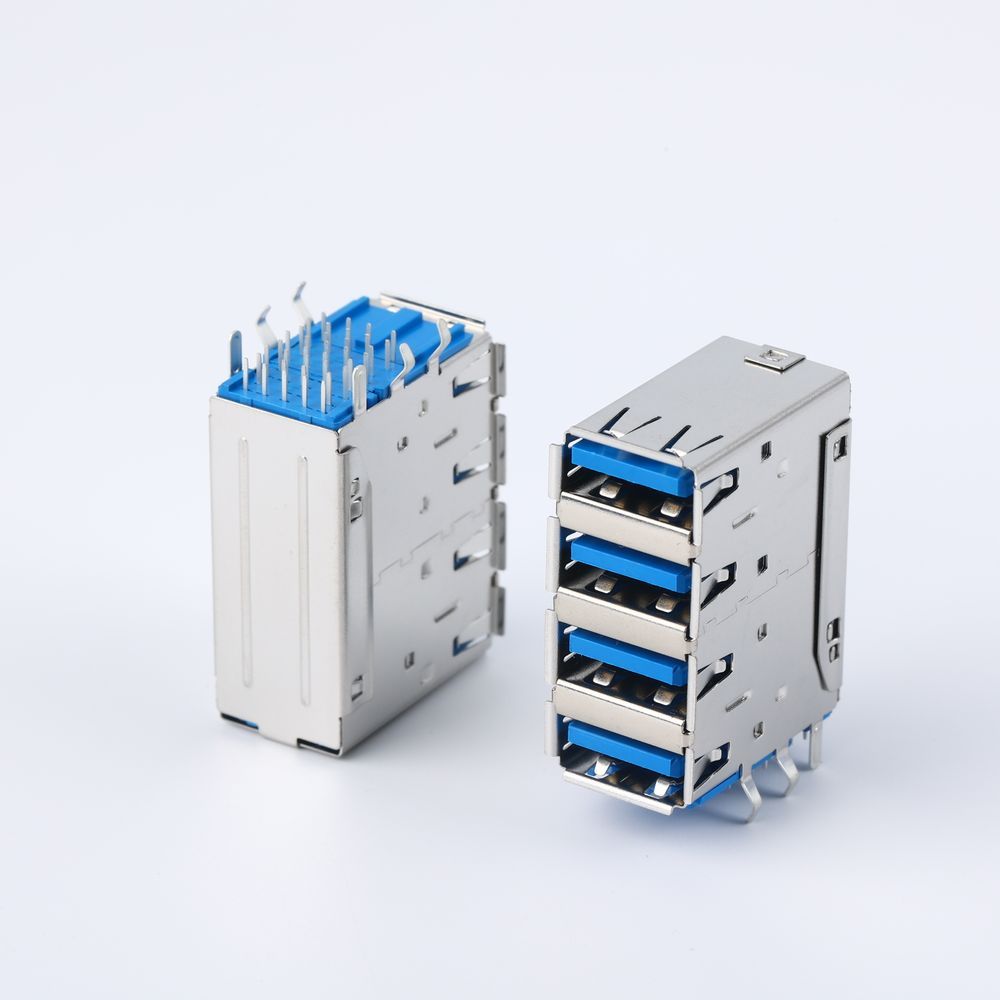

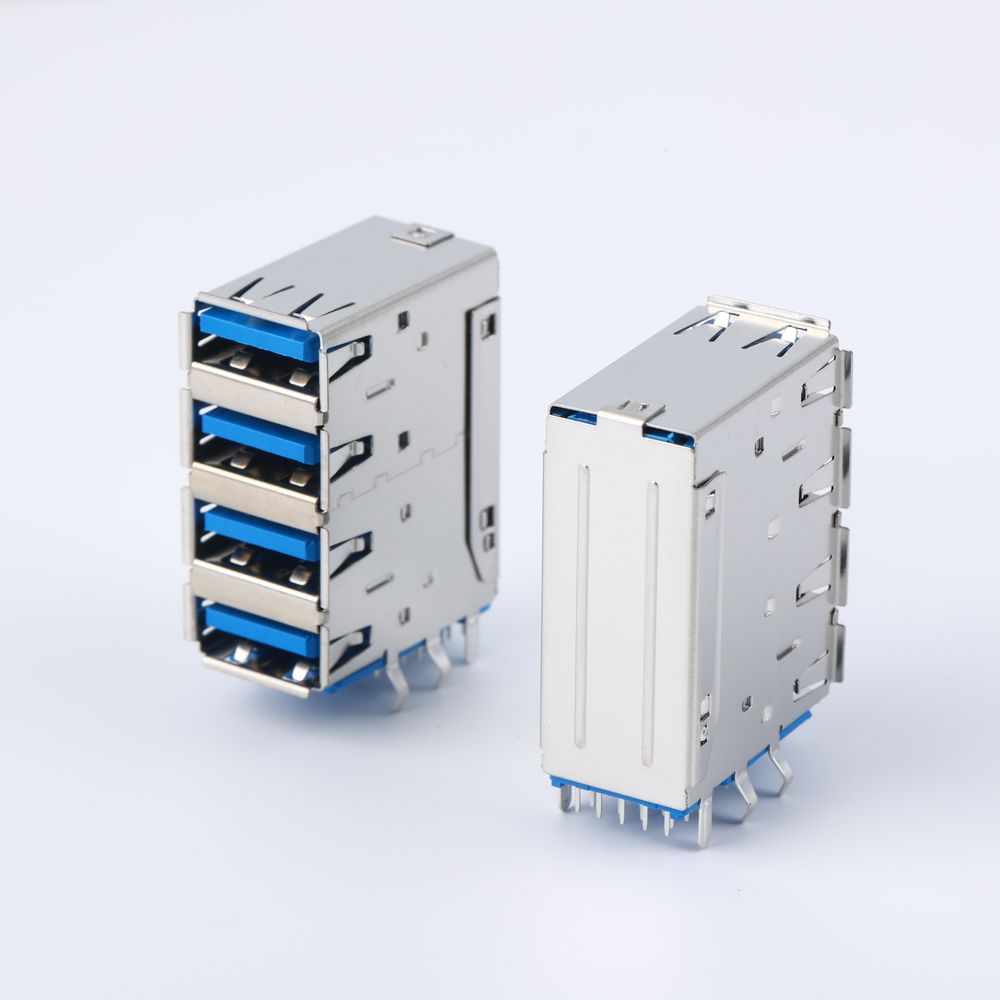

Modelo: AAUS+300D-21LHR USB 3.0 fourth floor
Marca: yifeng
| Descargar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| USB 3.0 CONTACTS(1,2,3,4 PORT): | COPPER ALLOY, AU G/F & 80U'' MATTE TIN PLATED & 50U'' NICKELPLATED |
| SHELL: | SUS304 T=0.25, 50U' MATTE TIN PLATING ON SOLDER TAILS OVER 20U' MIN NICKEL |
| BLACK SHELL: | SUS304 T=0.25, NO PLATED |
| MIDDLE BULLET: | SK7, T=0.3, 80U' NICKEL PLATED & 50U' COPPER PLATED |
| HOUSING: | PA66+30%G.F, BLUE |
| 3PORT HOUSING: | PA66+30%G.F, BLUE |
| 4PORT HOUSING: | PA66+30%G.F, BLUE |
| COVER 1: | PA66+30%G.F, BLUE |
| COVER 2: | PA66+30%G.F, BLUE |
| CONTACT CURUENT RATING: | |
| 1.8A FOR USB3.0 VBUS PIN AND ITS CORRESPONDING GEND PIN | |
| CONTACT RESISTANCE: | |
| INITIAL 30 MILLIOHMS MAX FOR VBUS AND GND CONTACTS | |
| NINTIAL 50 MILLIOHMS MAX FOR ALL OTHER CONTACTS | |
| AFTER DURABILITY 10 MILLIOHMS MAX CHANGE | |
| INSULATION RESISTANCE: | 100 MEGOHMS MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100 VRMS AC MIN |
| MECHANICAL CHARACTERISTICS: | |
| CONNECTOR MATING FORCE : | 20N MAX |
| CONNECTOR UNMATING FRCE : | 10~20N INITIAL |
| DURABILITY: | 5000 CYCLES |
| OPERATING TEMPERATURE: | -55℃~+85℃ |
| RECOMMENED PROCESS: WAVE SOLDER 260℃ 6 SECONDS | |
| THE CONNECTOR 1S ROHS AND HALOGEN FREE COMPLAINT | |
| RECOMMENED PCB THICKNESS: 1.60±0.05mm | |
| LAYER USB3.0 GEN1 | |
