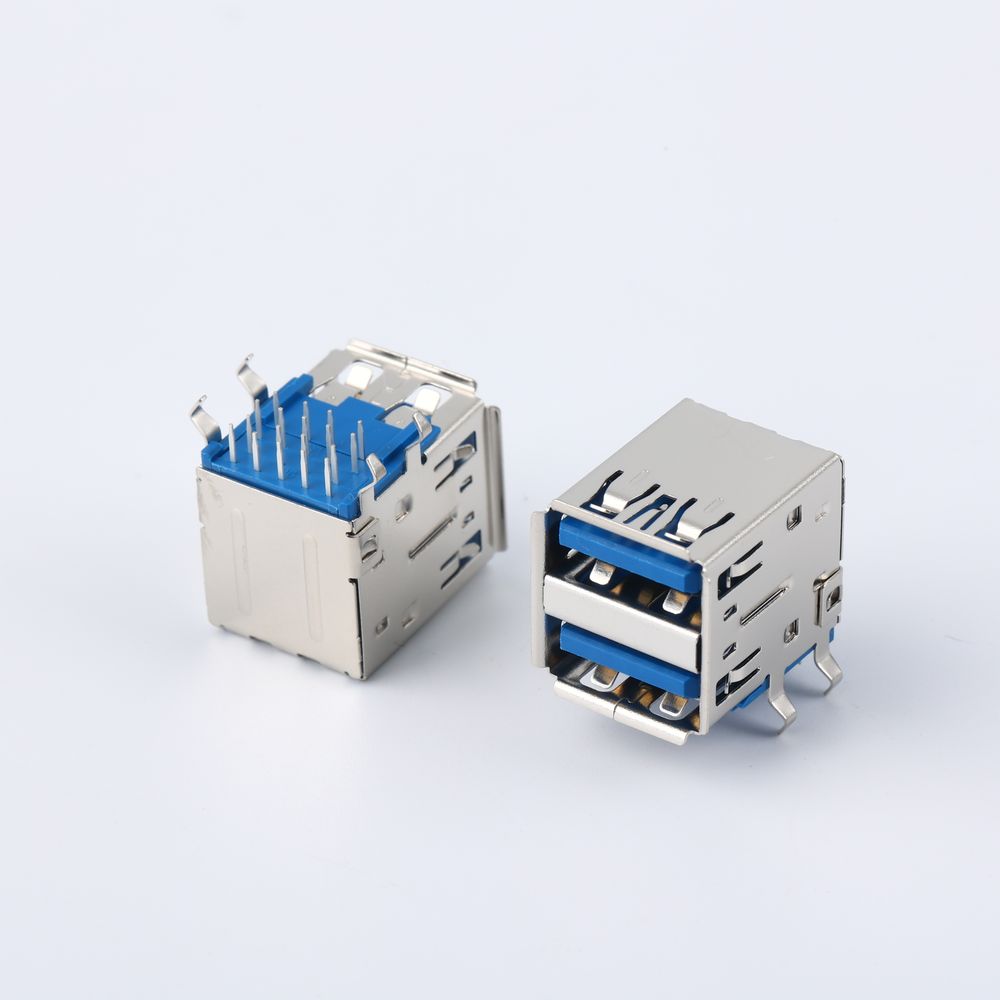

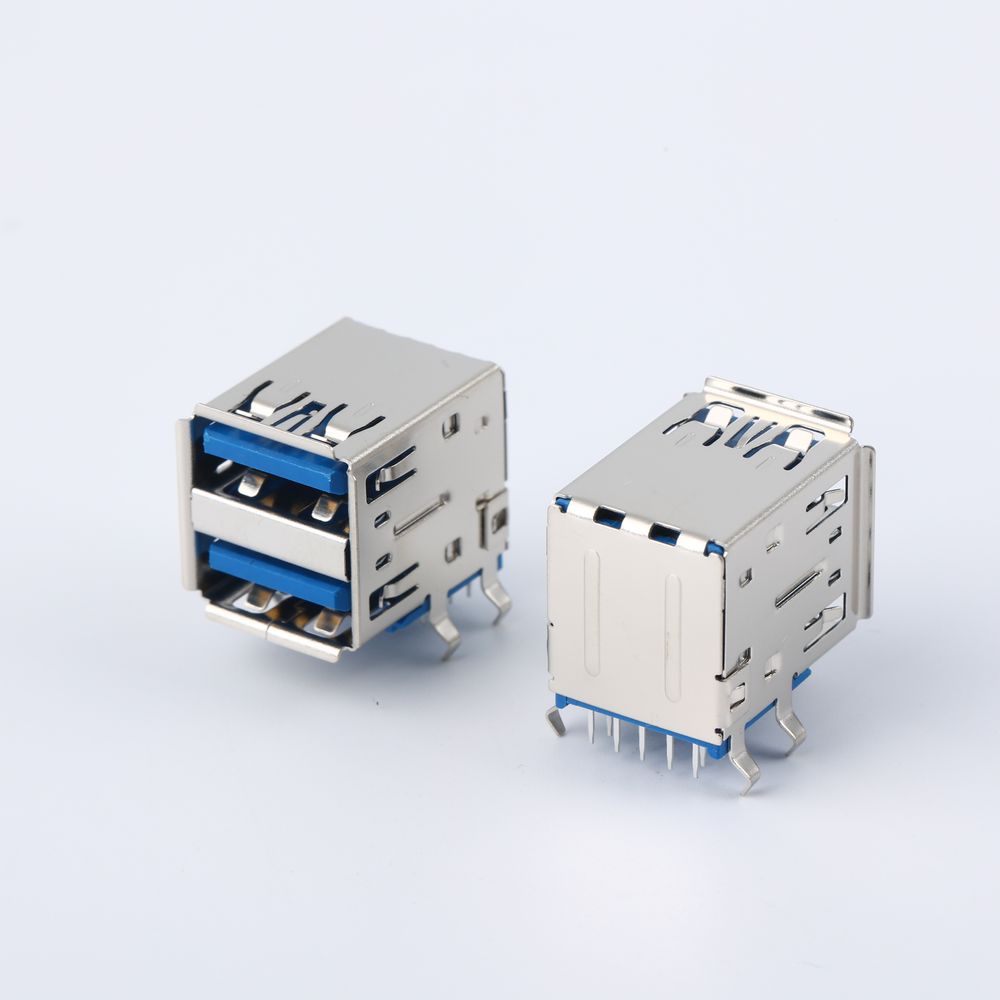

Modelo: AAUS+K3TN-18P0 USB 3.0 double R/A
Marca: yifeng
| Descargar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PA9T BLUE |
| SHELL: | SUS T=0.3, NI 30U' MIN |
| CONTACT 4PIN: | C5191, G/F CONTACT AREA, 80U' MIN BRIGHT TIN ON SOLDER TAILS, NI 30U' MIN UNDER PLATING OVER ALL |
| CONTACT 5PIN: | C2680, G/F CONTACT AREA, 80U' MIN BRIGHT TIN ON SOLDER TAILS, NI 30U' MIN UNDER PLATING OVER ALL |
| REAE COVER: | PA9T BLUE |
| MIDDLE SPRING: | SUS201 |
| ELECTRICAL CHARACTERISTICS: | |
| CURUENT RATING: | 1.8A FOR USB2.0 CONTACTS, 0.25A FOR OTHER CONTACTS |
| VOLTAGE RATING: | 125 VAC RMS |
| CONTACT RESISTANCE: | 30mΩ MAX (INITIAL), 50mΩ MAX (FINAL) |
| INSULATION RESISTANCE: | 500mΩ MIN 500V DC |
| DIELECTRIC WITHSTANDING VOLTAGE: | 1000V AC RMS 50HZ OR 60HZ 1 MINUTE |
| INSERTION FORCE : | 35N MAX |
| WITHDRAWAL FORCE : | 10N MIN |
| OPERATING LIFE: | 5000 CYCLES |
| STORAGE TEMPERATURE: | -40℃~+85℃ |
| OPERATION TEMPERATURE: | -40℃~+85℃ |
