| Cantidad de pedido mínima: | 1 |
Sombra:

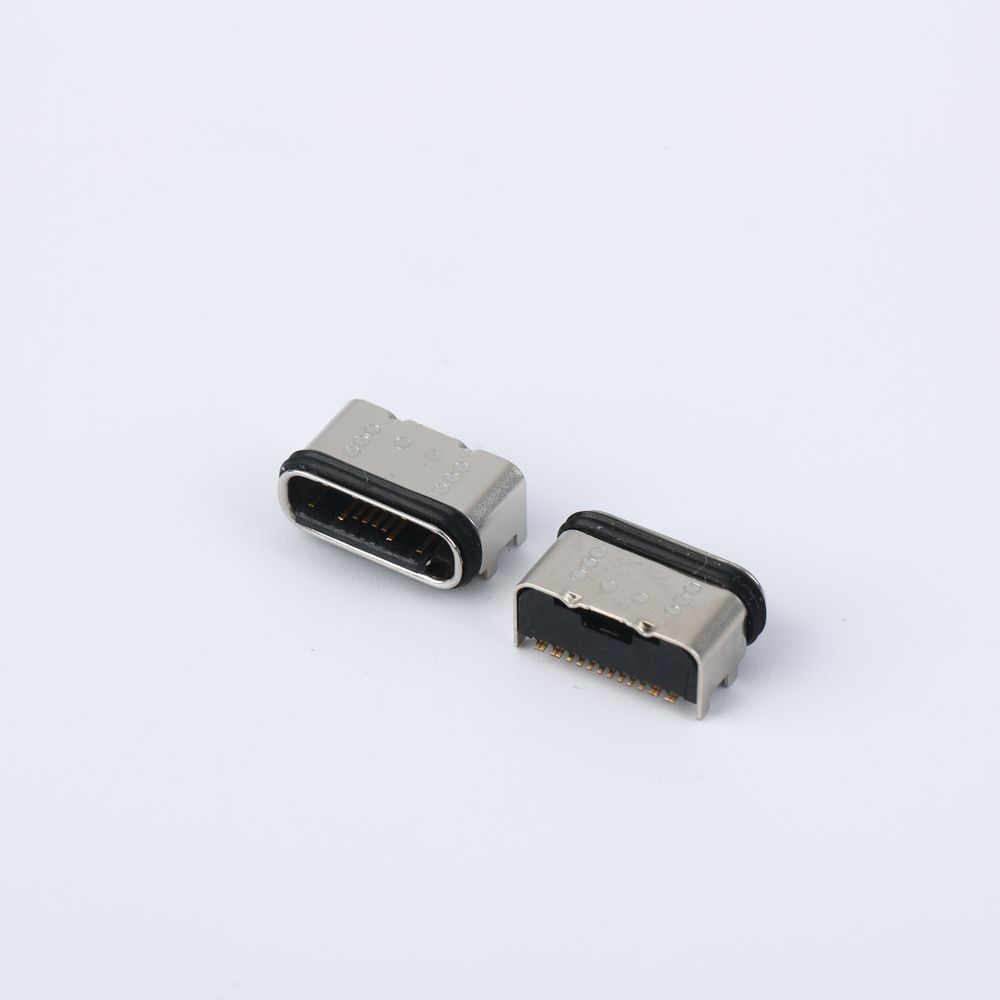

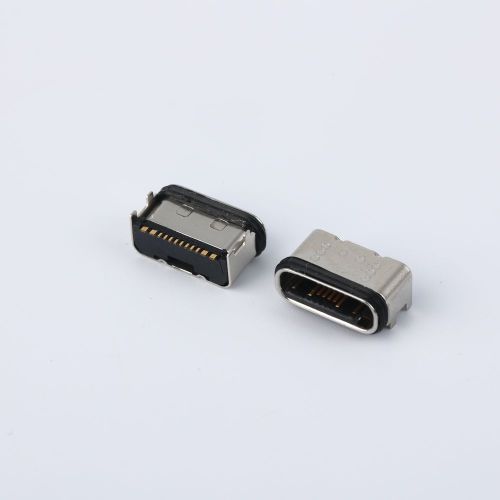

Modelo: AAUS+16C3+NV3TA 16pin type-c IP54 SMT
Marca: yifeng
| Descargar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PA9T UL94V-0 BLACK. |
| CONTACT: | COPPERY ALLOY |
| MIDDLE PLATE: | SUS |
| INSIDE SHELL: | SUS |
| OUT SHELL: | SUS |
| RUN-RING: | SILICA GEL |
| CURUENT RATING: | |
|
VBUS AND GEN CONTACTS RATED AT 3A MAX
|
|
|
VBUS AND GEN CONTACTS RATED AT 0.5A MIN
|
|
|
0.9Amps MAX FOR ALL OTHER CONTACT
|
|
|
PARALLELED FOR A TOTAL OF 5A
|
|
| INITIAL CONTACT RESISTANCE: | 40 MEGOHMS |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC MIN |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 8~20N (INITIAL), 6~20N (AFTER 10000 CYCLES) |
| FREQUENCE: | 200±50 CYCLES/HOUR, 10000 CYCLES |
| OPERATING TEMPERATURE: | -40℃~+80℃ |
