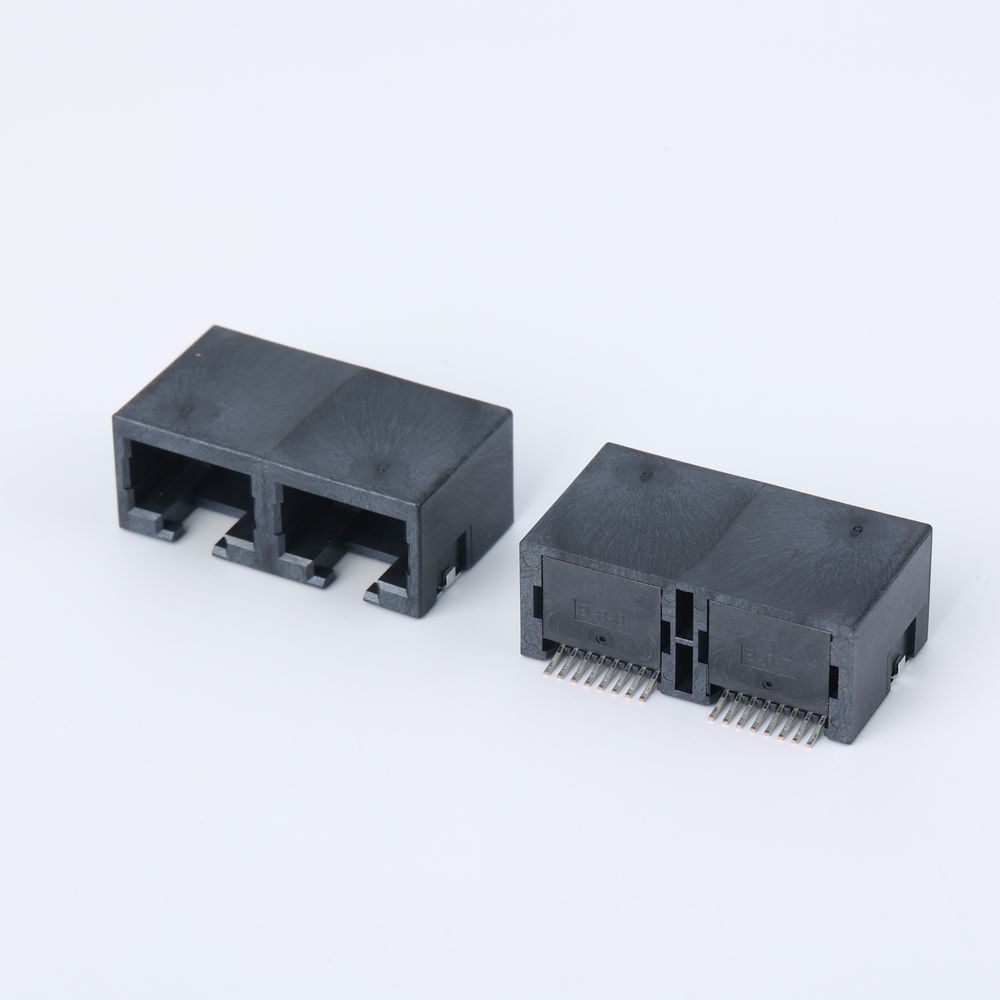

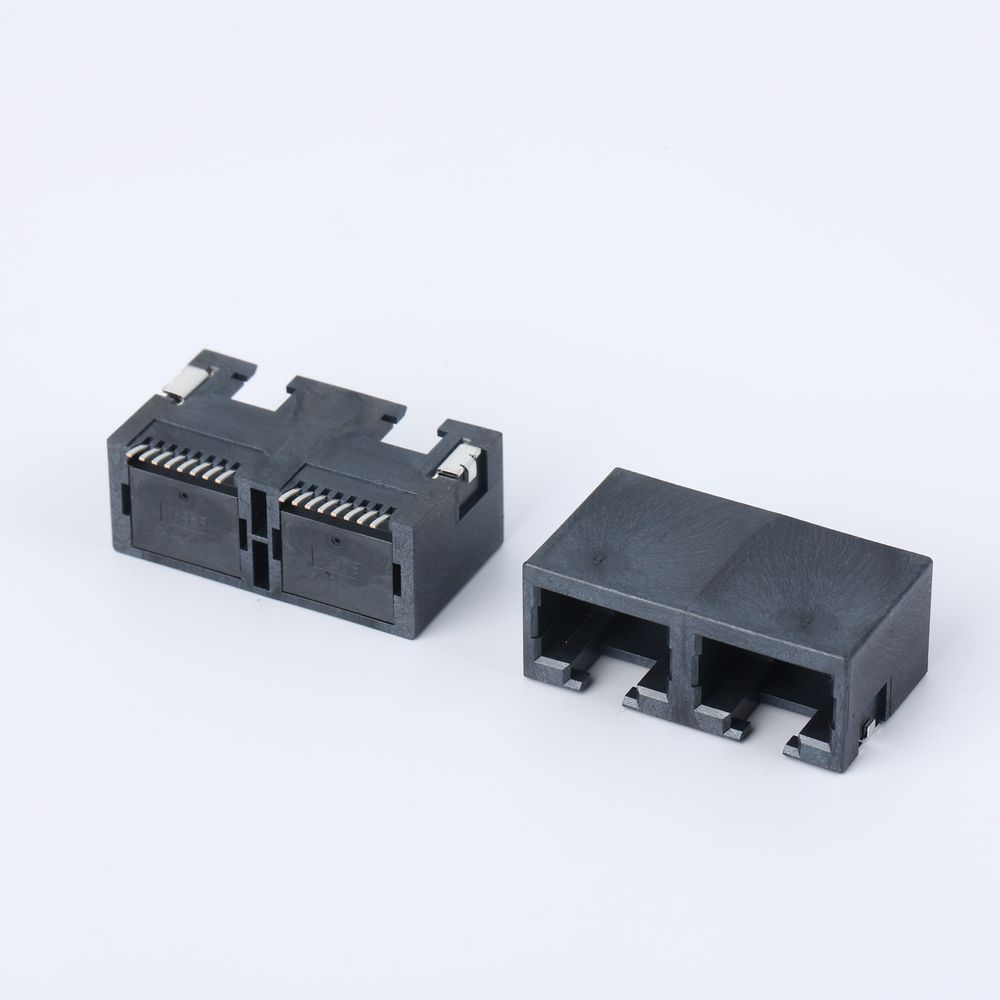

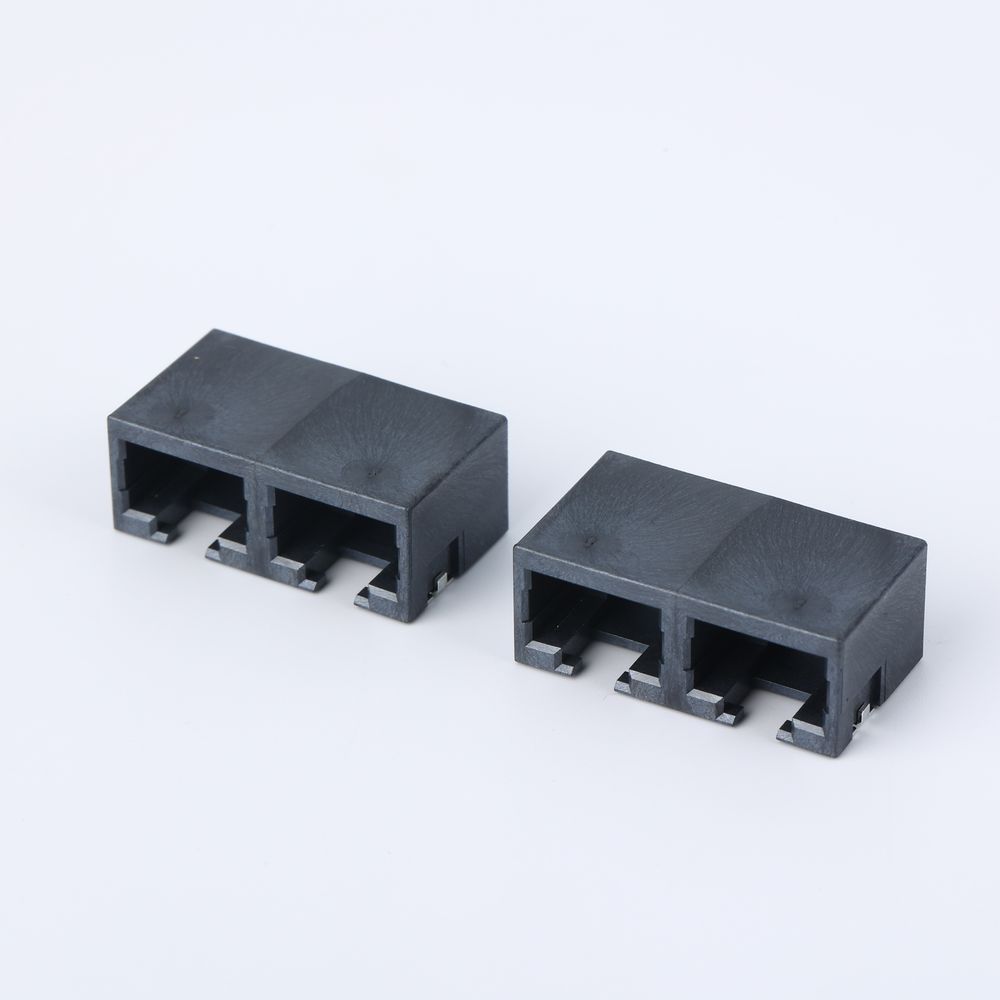

Modelo: AAOE+5A27+295B 1*2 R/A RJ 45 connector
Marca: yifeng
| Descargar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Material description | |
| HOUSING/INSTER: | THERMOPASTIC LCP UL94V-0 RATED, BLACK |
| CONTACT: | PHOSPHOR BRONZE T=0.30mm, PLATED NI 30U'', SN 100U'' MIN, GOLD PLATING ON CONTACT AREA |
| SMT PIN: | COPPER ALLOY T=0.40mm, PLATED NI 30U'', SN 100U'' MIN |
| ELECTRICAL: | |
| CURUENT RATING: | 1.5AMP |
| VOLTAGE RATING: | 150VAC RMS |
| CONTACT RESISTANCE: | 20mΩ MAX |
| INSULATION RESISTANCE: | 500mΩ MIN AT 500VDC |
| DIELECTRIC STRENGTH: | 1500VAC TO 1000VAC RMS AT 0.5MA 50HZ TO 60HZ 1MINUTE |
| MATING FPRCE: | 30N MAX |
| RETENTION STRENGTH: | 50N FOR 60S±5S |
| OPERATING LIFE: | 750 CYCLES MIN |
| STORAGE TEMPERATURE: | -40℃~+85℃, HUMIDITY ＜80% |
| OPERATING TEMPERATURE: | -40℃~+85℃ |
