| Cantidad de pedido mínima: | 1 |
Sombra:

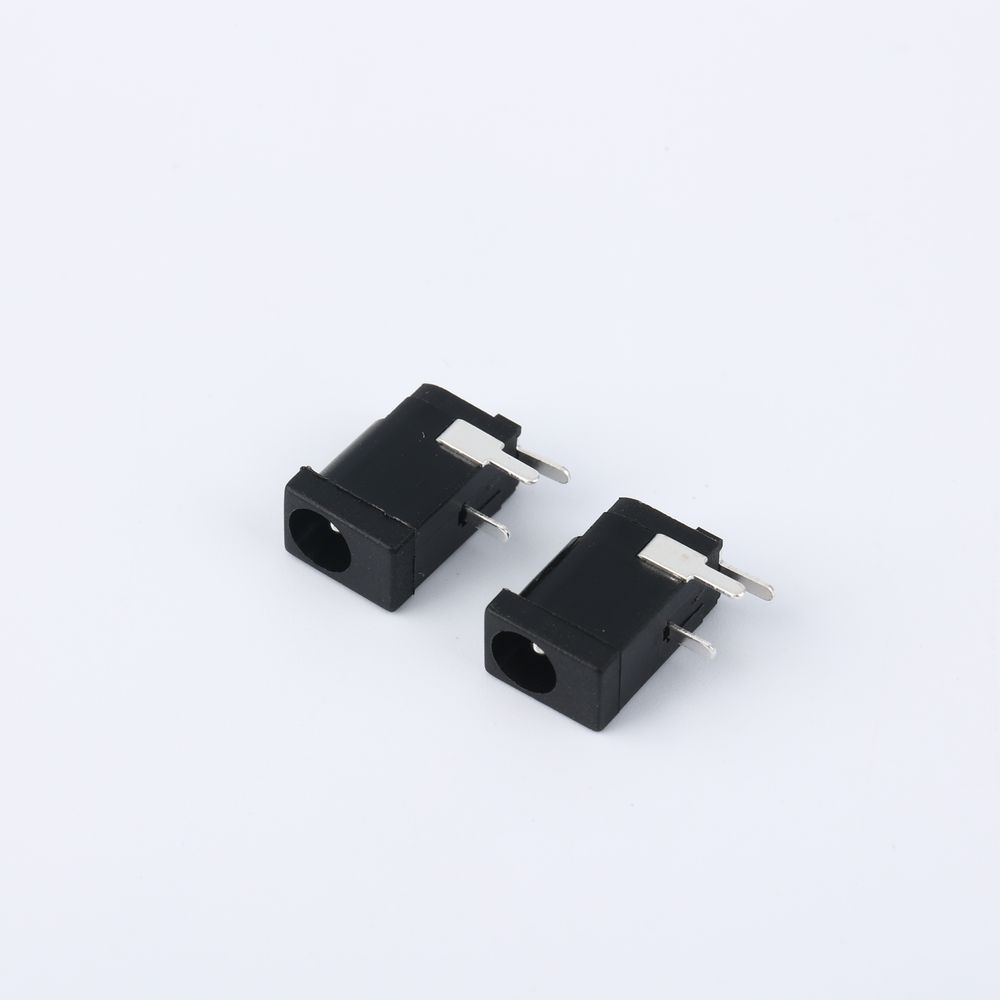

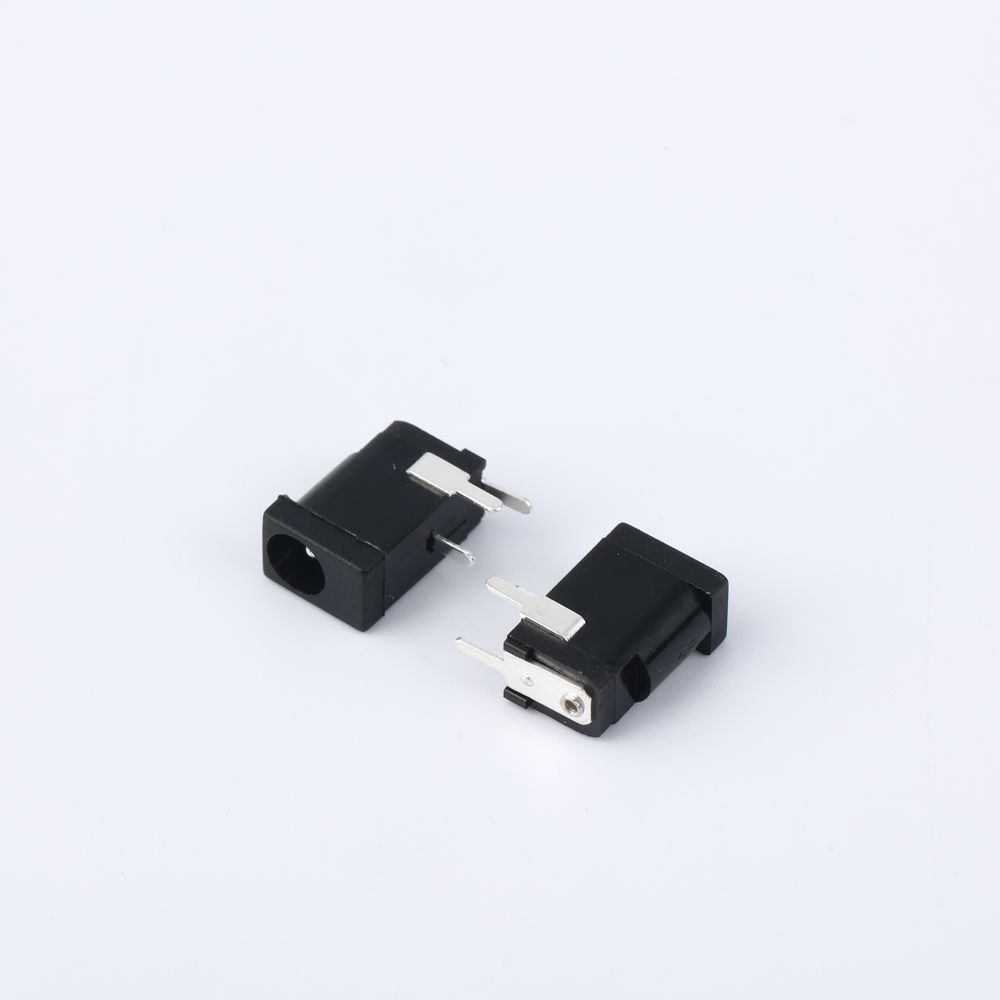

Modelo: DC Power Jack ∅1.3
Marca: yifeng
| Descargar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| TERMINAL 1#: | H65 t=0.35 |
| TERMINAL 2#: | C5191 t=0.30 |
| TERMINAL 3#: | H65 T=0.35 |
| ENTER PIN: | H65 ∅1.3 |
| Housing: | PA66+30%G/F.,UL94V-0 Black |
| Cover: | PA66+30%G/F.,UL94V-0 Black |
| Plating： | |
| Terminal： 1#&2#&3#: | 1u"MIN.Ag In Contact |
| ENTER PIN: | 1u"MIN.SN In Contact Area Over 30u” MIN. Ni. |
| ELECTRICAL CHARACTERISTICS: | |
| RATING: | 30V 2A |
| CONTACT RESISTANCE: | 50m MAX |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR ONE MINUTE |
| INSULATON RESISTANCE: | 100m MIN. MEASURED BY 500V DC |
| MECHANICAL CHARACTERISTICS: | |
| INSERTION FORCE : | 0.3~3.0 KGF |
| WITHDRAWAL FORCE : | 0.3~3.0 KGF |
| LIFE TEST: | 5000 CYCLES MIN. |
| FOR REFLOW SOLDERING LEAD-FREE PROCESS | |
